Our Studios
Whether your vision calls for a single person live shot or a multi-camera production before a live audience, Skyway has the ideal studio to realize your dream.
-
studio A
-
studio B
-
LED Smart Stage
-
studio D
-
studio E
-
studio F
-
Flex Space
-
Full Technical Specs
- studio A
- Wall to Wall: 58' x 71' (4,118 sq. ft.)
- Grid Height: 15' 10"
- Curtain to Curtain: 56' 6" x 47'
- 800 amp capacity in lighting grid
- 200 amp 3 phase power drop with cam locks
- Download Floor Plan

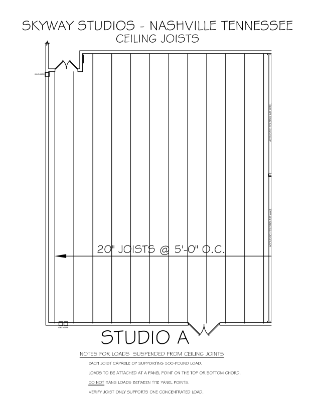

- Download Ceiling Joists

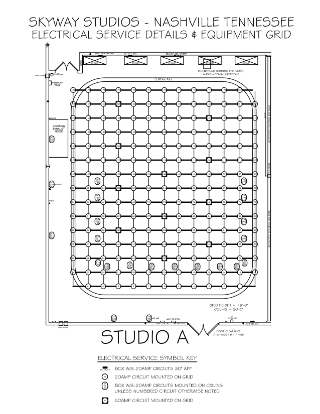

- Download Electrical Service
- studio A







- studio A

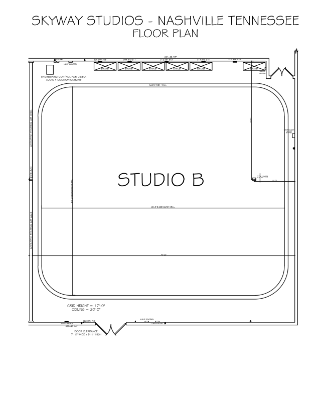

- studio B
- Wall to Wall: 71' x 71' (5,041 sq. ft.)
- Grid Height: 16' 11"
- Curtain to Curtain: 65' x 68' 5"
- 800 amp capacity in lighting grid
- 100 amp 3 phase power drop with cam locks
- Download Floor Plan
- Download Ceiling Joists

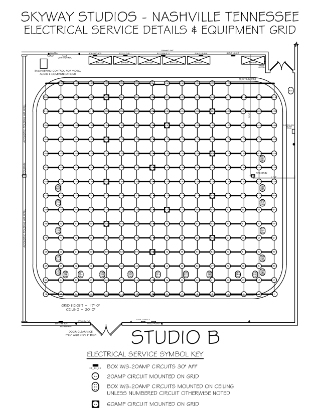

- Download Electrical Service
- studio B









- studio B

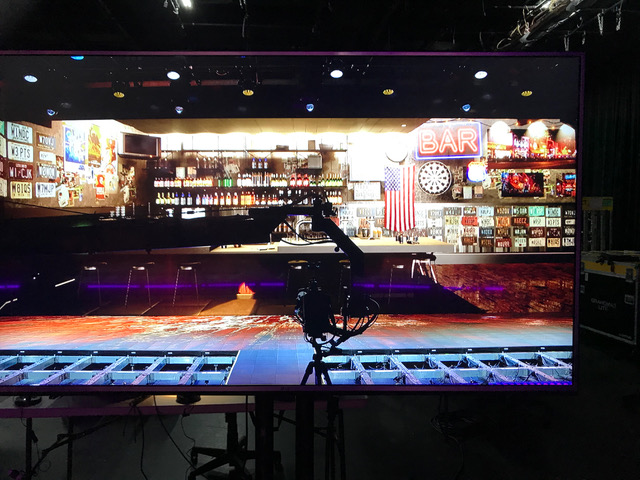

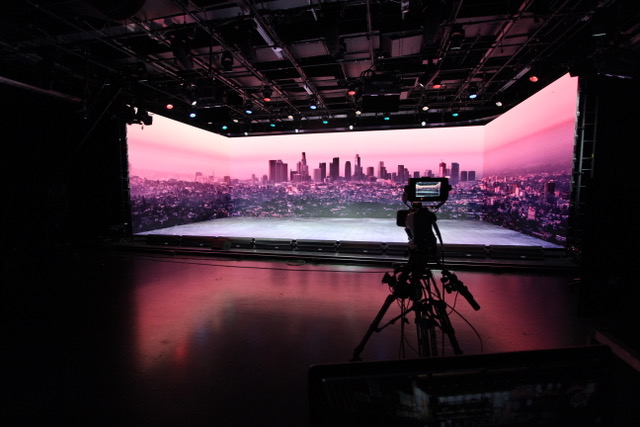

- LED Smart Stage
- Wall to Wall: 58' x 58' (3,364 sq. ft.)
- Grid Height: 15' 10"
- Curtain to Curtain: 53' x 47'
- 800 amp capacity in lighting grid
- 200 amp 3 phase power drop with cam locks

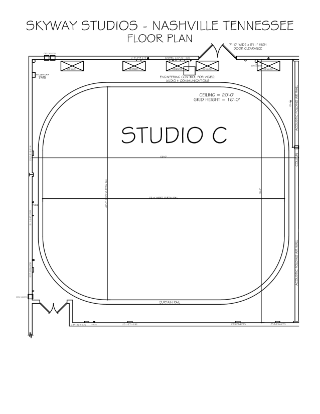

- Download Floor Plan

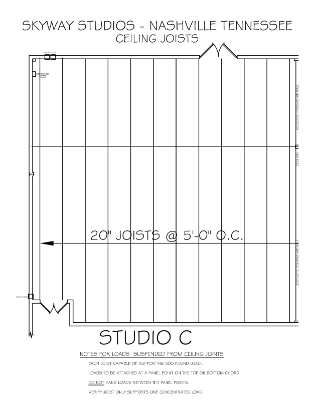

- Download Ceiling Joists

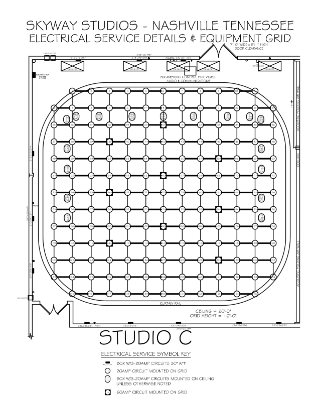

- Download Electrical Service
- LED Smart Stage









- LED Smart Stage















- studio D
- Wall to Wall: 71'' x 58' (4,118 sq. ft.)
- Grid Height: 16' 11"
- Curtain to Curtain: 65' x 48' 4"
- 800 amp capacity in lighting grid
- Cyc Wall: 45' Wide X 14' tall

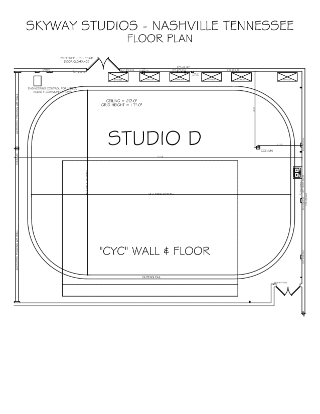

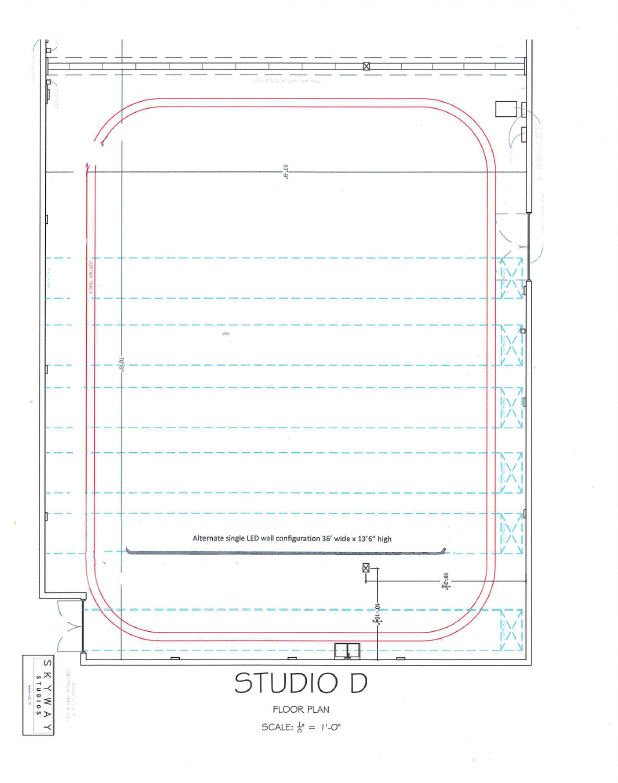

- Download Floor Plan
- Download Ceiling Joists
- Download Electrical Service
- studio D









- studio D



- studio E
- Wall to Wall 29' x 22'
- Green Screen: 20' wide x 8' tall
- Faux Brick: 20' wide x 8' tall
- Grid Height: 13' x 10.5"
- Download Floor Plan
- studio E



- studio E

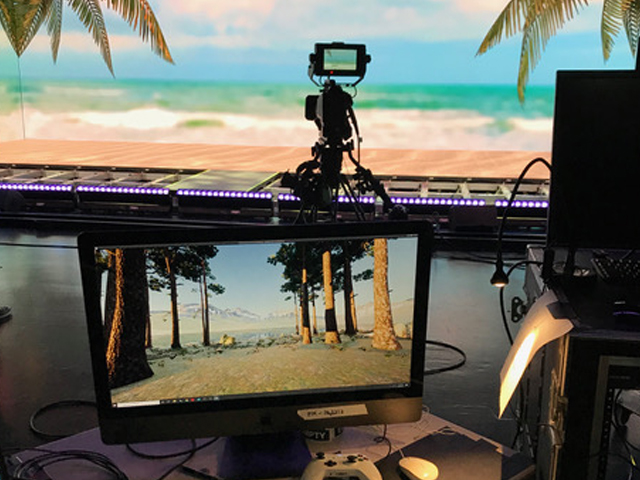

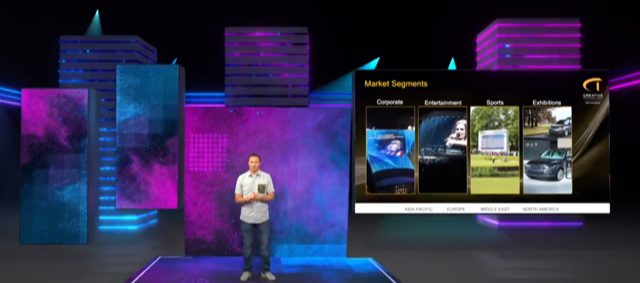

- studio F
- 2.8MM LED Wall
- Upstage Wall - 10’x 10’
- 5.9 MM LED Floor - 14’x7’
- Full HD 1920 x 1080 59.94 production support
- Download Floor Plan
- studio F



- studio F



- Flex Space
- Approx. 12,000 sq. ft. overall usable space (including offices)
- Approx. 5,950 sq. ft. main open space
- Approx. 18' max ceiling height
- Separate entrance
- Download Floor Plan
- Flex Space



- Full Technical Specs
Facility Infrastructure
Commercial Power
- 2500A 277/480VAC 3-phase commercial power service
- Dual Siemens 2500A switchboards with bus tie capability
- Two Westinghouse 2500 automatic transfer switches
Emergency Power
- Two 1,750 KW (2650A 277/480 VAC 3-phase Caterpillar 3516 generators, each with 3,000 gallon diesel fuel tanks
- Dual Siemens 2500A switchboards with bus tie capability
- 10,000 gallon, double wall above ground diesel fuel tank
Power Protection
- 225KVA UPS system for technical power
- 150 KVA UPS system for telephone and server room power
- Current technology surge protection systems
HVAC
- Two 250 ton, 165 KW, water cooled rotary liquid chillers
- Two 1500 GPM two-cell cooling tower units
- Two 1,440,000 BTU natural gas boilers
- 34 hot/cold water air handler units
- Backup rooftop units
Fire Suppression and Alarms
- FM-200 clean agent fire suppression system
- Dry pre-action sprinkler system
Security
- Keyscan access control system integrated into main security system
- Over 50 access scanners and magnetic locks
- Fifteen security cameras interfaced to main security system
